WebAccess supports the importing of Advantech APAX-5000 and 6000 series variables, including Tag names and Tag addresses, from the KW CSV file to the WebAccess database and automatically converts the KW variable address to a Modbus address for runtime exchange real-time data.

Step 1：APAX KW CSV Configuration

When you make all the IO configurations and variable settings, execute the following instructions to export all the variables (Global Variables only):

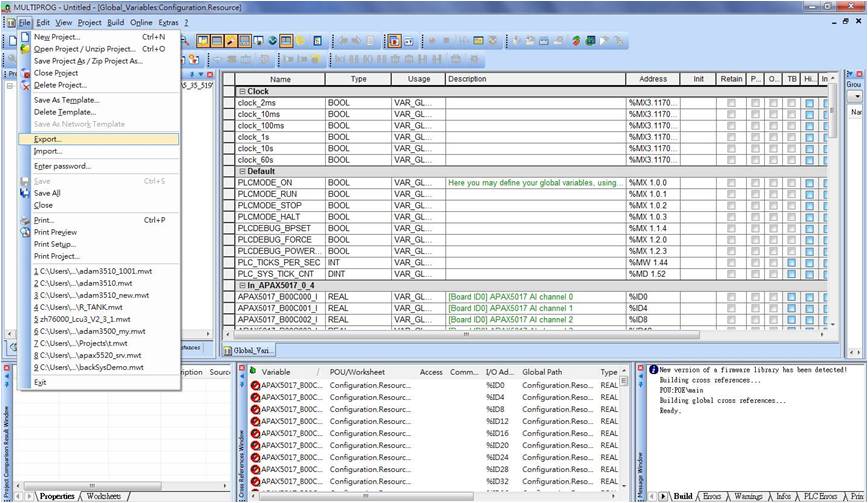

• Select File and Export：Export the I/O information to the CSV file from the command line.

Figure 19.4.1：KW page

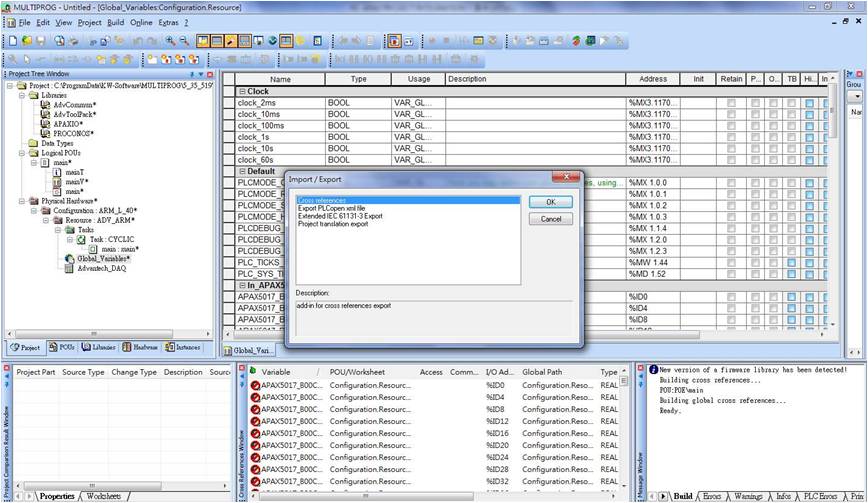

• Select Cross reference from the pop-up dialog box and click OK

Figure 19.4.2：KW page－Select Cross reference

• Save CSV file： Keep the default file type-CSV - and specify the file name and path.

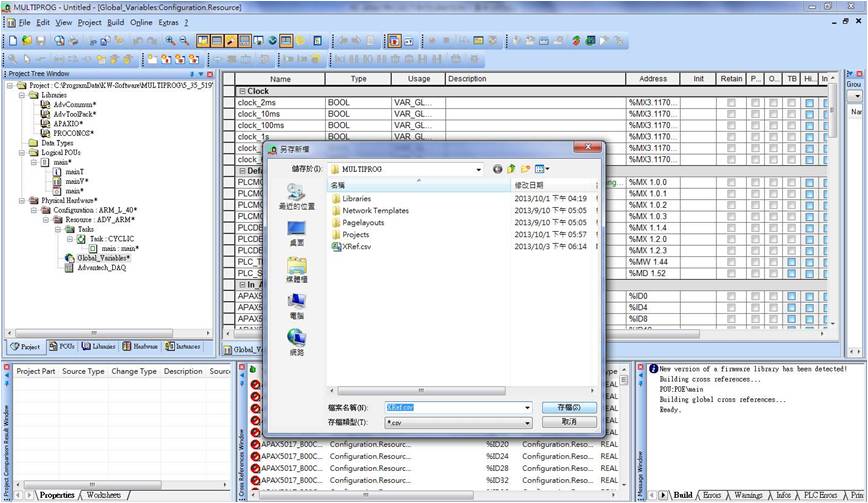

Figure 19.4.2：KW page — Save CSV file

• The CSV file

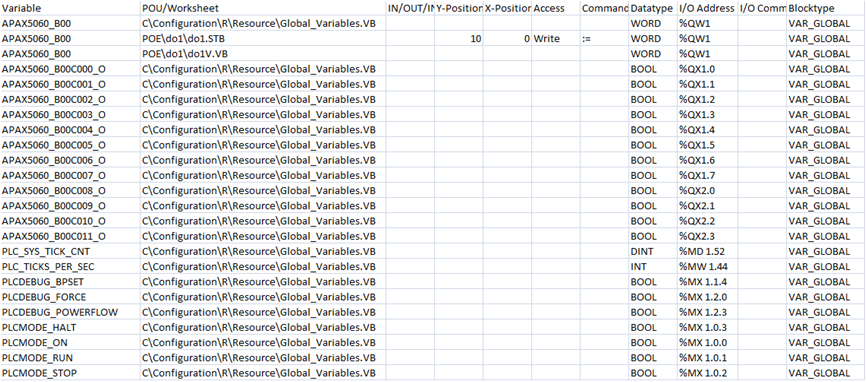

Figure 19.4.3：CSV file format

Note：

The following CSV file format limitations applicable when importing APAX-5000/6000 Variables to WebAccess:

• POU/Worksheet：There are different Configurations in APAX Devices, only Global Variables defined in the Resource menu can be selected and exported into WebAccess.

• • For example：Physical Hardware=> Configuration：ARM_L_40*=> Resources:ADV_ARM*=> Global_Variables*, the POU/Worksheet will show C\Configuration\R\Resource\Global_Variables.VB

• Blocktype：Must be “VAR_GLOBAL”

• Datatype：Supports BOOL / BYTE / WORD / DWORD, UINT / USINT / UDINT, REAL / INT / DINT. Other KW special data types such as Structure_Array, OPC_Array, TIME, Extended_Task_Info / String / CON_STRU / CTUD, and user-defined Data Type are not supported in WebAccess.

• I/O Address:

• • If the Variable is in Share Memory, the opening of I/O Address must be %M_3 Type, like MX3 / %MB3 / %MW3 / %MD3. Other types of I/O Address do not support.

  • If the Variable is Input Tag, the opening of I/O Address must be %IX / %IB / %IW / %ID, like %IX0.1 / %IB0 / %IW0

  • If the Variable is Output Tag, the opening of I/O Address must be %QX / %QB / %QW / %QD, like %QX0.0, %QB3,%QW5

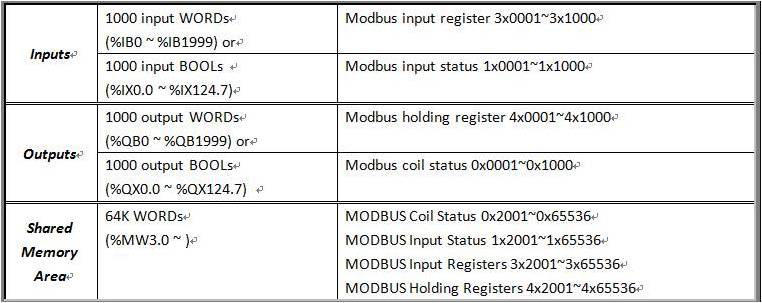

1. • APAX Mapping table spec.

Step 2：Import APAX variables from APAX CSV file and get real-time data

1. • Open Advantech WebAccess/SCADA Project Manager Page

   • Open or Create Your Project and SCADA Node

   • Click to select the SCADA node which list in Project/Node tree

   • Choose ImportExternalData in Toolbar

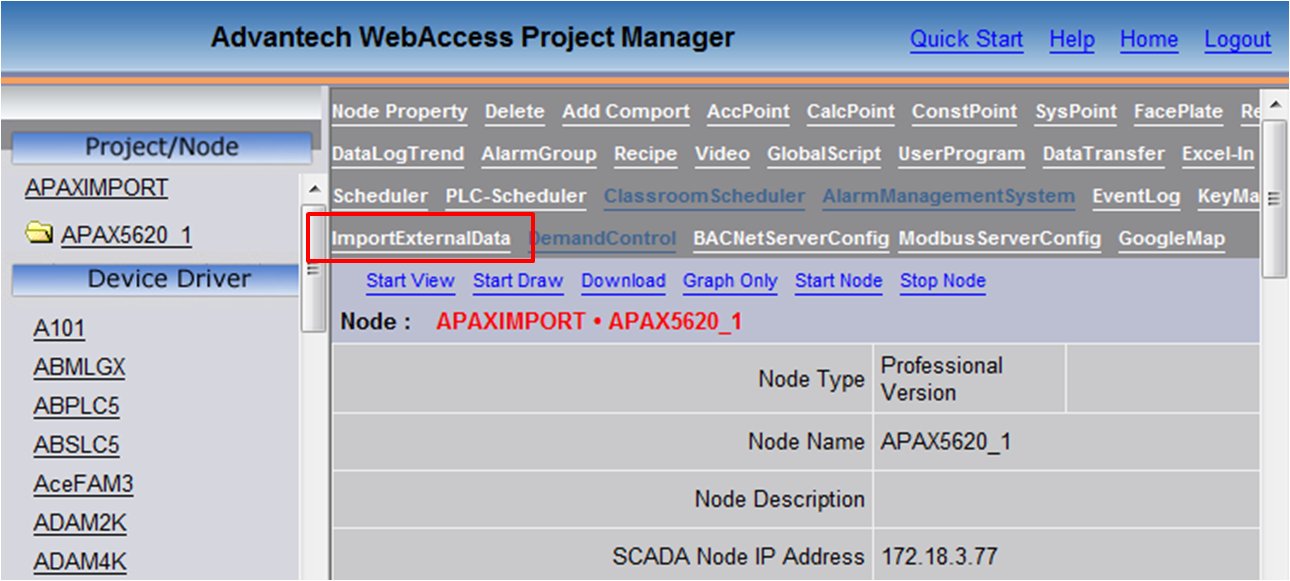

Figure 19.4.4：ImportExternalData Page

• Choose Import APAX-5000/6000 variables

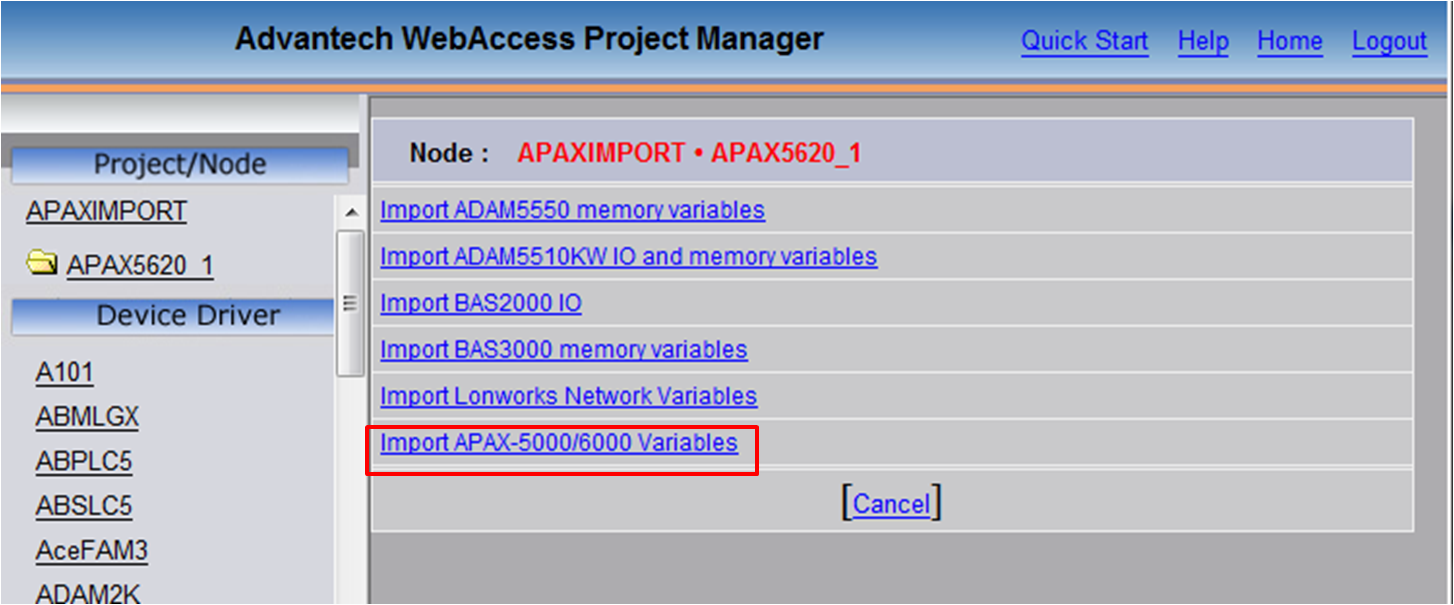

Figure 19.4.5：ImportExternalData Page

• Upload the CSV file from KW

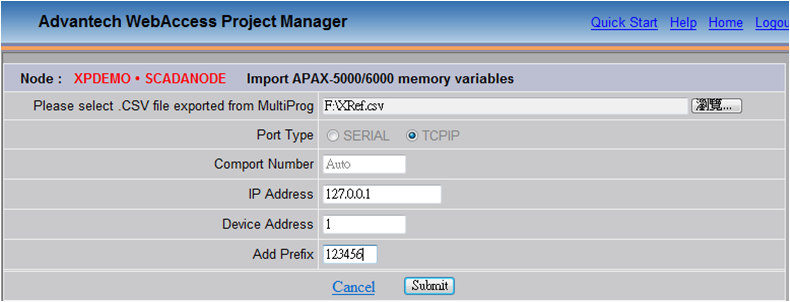

Figure 19.4.6：Upload the CSV file

• Select the Interface type: TCP IP or Serial

• • In TCP IP: Users can in  put the port number, device IP, device address

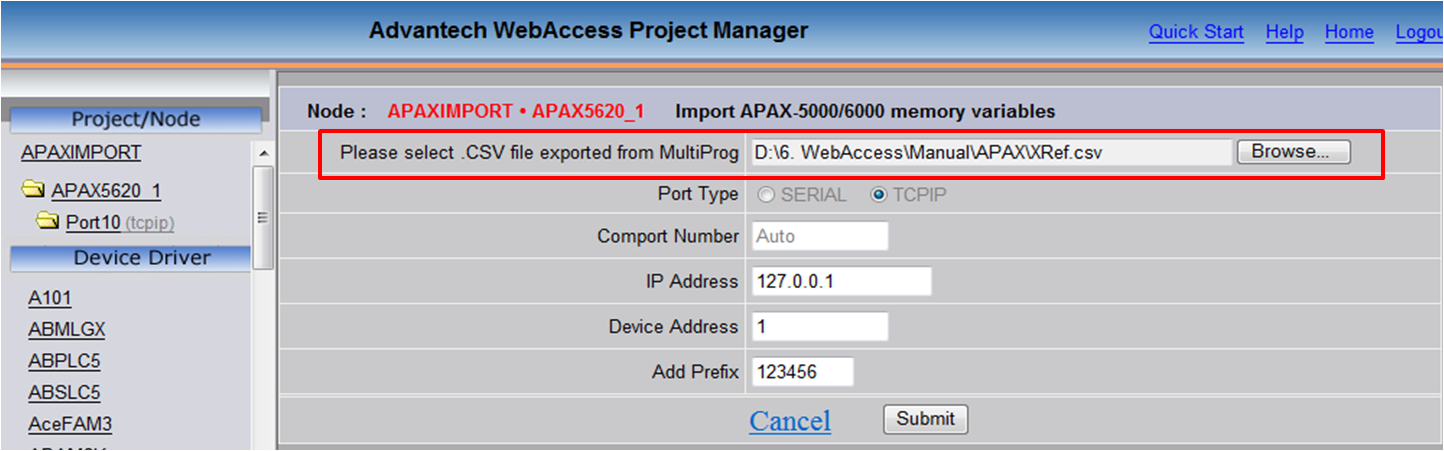

Figure 19.4.7：Configuration Page - TCPIP Port

• In Serial : Users can input the port number(EX: Serial Port 1), device unit number, baud rate, parity. The default is：9600,Even

Figure 19.4.8：Configuration Page - Serial Port

• Add prefix: Users can add a prefix of up to 6 characters to the entire tag name to distinguish tag names from different devices. For example, if the CSV data is APAX_5028_BO1C000, the tag name will become 123456_ 5028_BO1C000 after adding the prefix “123456”

• Submit will upload the configuration data

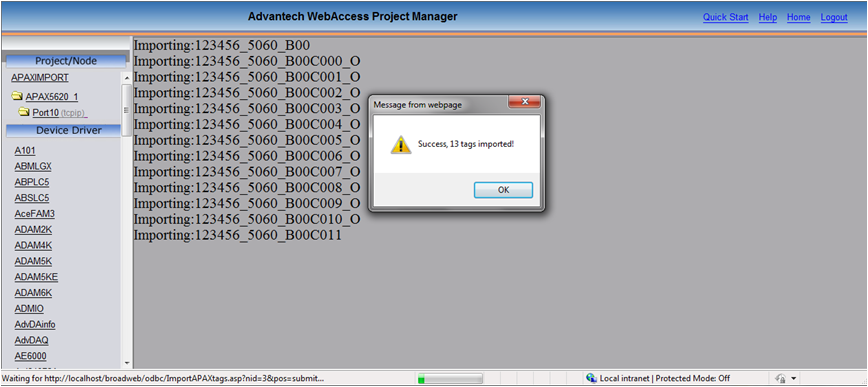

Figure 19.4.8：Data Import Page

• Check the import Tag(Variables) in Port/Device list Tree

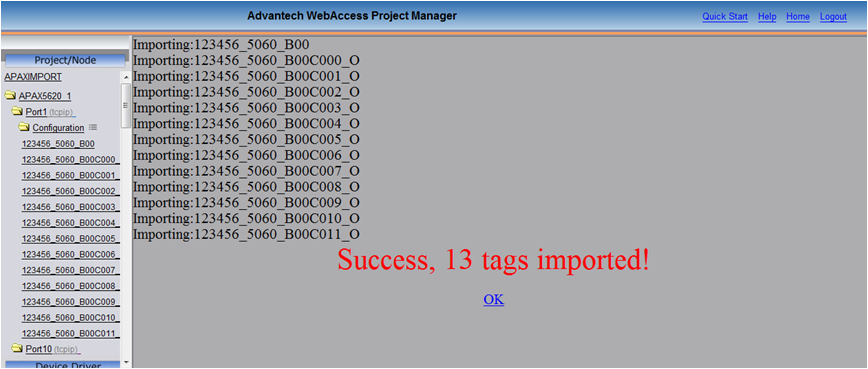

Figure 19.4.9：Data Import Page-2

Note：

• The length of the Tag name should be shorter than 21 characters. If the tag name in the APAX is more than 21 characters, WebAccess will only import the first 21 characters of the tag name.

• WebAccess will check for duplicate tag names before inserting them to the database. If a duplicate name is detected, the tag name will have an extra 4 digits added. For example, if there are three files called “NewVar” in the CSV file, WebAccess will import tag name as NewVar, NewVar0001, and NewVar0002.

If the total character length is greater than  21,  the first 17 characters are used and the  4 digit sequence numbers are added to the end.
