Date Time is the Date Commander Button linked the other trend/bar widget to set data time period in runtime22.4.33 [Commander]Date Time 2
Date Time is the Date Commander Button linked the other trend/bar widget to set data time period in runtime
Function
Support one button to config the data time in runtime. Click the button in Dashboard Viewer, the setting windows will pop up.
Date Time 2 picture

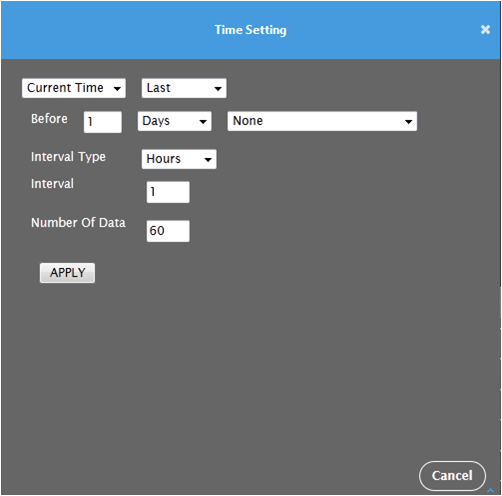

Date Time pop up Windows in Viewer
Properties：
Preferences：Build the different Properties of Date Time widget. Users can choose one Preferences and apply the properties directly next time usage.
Create：Create the current Properties as this widget Preferences
Update：Change the Properties of this widget Preferences
Delete：Delete this widget preferences
Set as default：User can set the widget preferences as default Widget display
Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…
Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area
Frame Color：Widget frame color
Background：Set Widget background Color.
Image：Upload and delete Widget background image
Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk
Upload the image from folder
Cancel the background
Extended：Extend Widget background image to whole widget.
Background without title：The background extend to Title area or not
Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.
Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).
Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title
Text：Type the title in three languages
Font Name：Set the Title font
Font Size：Set the Title font size
Font Color：Set the Title font Color
Background：Set the Title area background Color
image：Upload the Title area background image
Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk
Upload the image from folder
Cancel the background
Extended：Extend the background image to whole title area
Default date：Set time mode and data type.
Current time
Before ：set the time before current time.
Start interval
Time interval ：set total time interval.
Start date：set start sate.
Hours：Set hour.
Minutes：Set minutes.
Color：Set Button color, and button text color in control panel
