Vertical Text Value composed by two vertical blocks of text, description and value, allowing users to display the real-time data and the description of data.
Function：
Set the top block and the bottom block properties separately.
Connect with WebAccess Tag and display the real-time data.

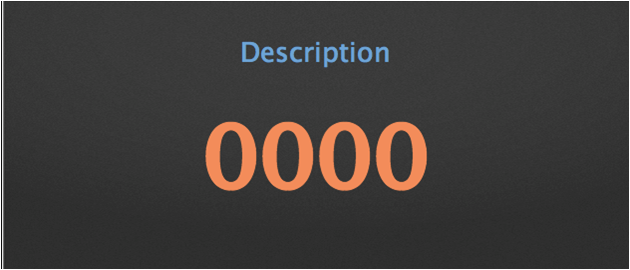

Vertical Text Value picture
Properties：
Preferences：Build the different Properties of Vertical Text Value widget. Users can choose one Preferences and apply the properties directly next time usage.
Create：Create the current Properties as this widget Preferences
Update：Change the Properties of this widget Preferences
Delete：Delete this widget preferences
Set as default：User can set the widget preferences as default Widget display
Widget Setting：Set the related properties of widget, such as Widget name, Frame Color, Background, Time Interval, etc…
Widget name：Name of Widget. The title show on the top of Widget when mouse move to the top and appear blue area
Frame Color：Widget frame color
Background：Set Widget background Color.
Image：Upload and delete Widget background image
Select the image from WebAccess widget background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetBk
Upload the image from folder
Cancel the background
Extended：Extend Widget background image to whole widget.
Background without title：The background extend to Title area or not
Height in Mobile Phone：Config the widget display height in Mobile. Choose full size, half size or quarter size in two phone display types, such as Small Portrait and Small Landscape. User also can self-define the display height with unit px.
Time Interval：Set data refresh time in PC/Pad and Phone mode (unit: Days/ Hours/ Minutes/ Seconds).
Title：The top area of the Widget is the Title. Type the title of Widget and Set the related Properties of title
Text：Type the title in three languages
Font Name：Set the Title font
Font Size：Set the Title font size
Font Color：Set the Title font Color
Background：Set the Title area background Color
image：Upload the Title area background image
Select the image from WebAccess Widget Title background folder in C:\inetpub\wwwroot\broadweb\WADashboard\dResource\bkImage\daWidgetTitleBk
Upload the image from folder
Cancel the background
Extended：Extend the background image to whole title area
Top Text Block Setting
Value Replaced : Replace Text block with tag value
Text : Set text description
Font : Set the font type of the Text/tag.
Color : Set the font color of the Text/tag.
Align : Set horizontal position of the Text/tag. Ex: Right Center or Left
Vertical Align : Set the vertical position of the Text/tag. Ex: Top, Center or Bottom.
Size : Set the font size of the Text/tag.
Font Weight : Set font weight of the Text/tag. Ex, Bold or Normal
Block Height(%) : Set the vertical position of the Text block
Bottom Text Block Setting
Value Replaced : Replace Text block with tag value
Text : Set text description
Font : Set the font type of the Text/tag.
Color : Set the font color of the Text/tag.
Align : Set horizontal position of the Text/tag. Ex: Right or Center or Left
Vertical Align : Set the vertical position of the Text/tag. Ex: Top, Center or Bottom.
Size : Set the font size of the Text/tag
Font Weight : Set font weight of the Text/tag. Ex, Bold or Normal
WebAccess Data Source :
Tag : Choose the desire tag from WebAccess
