24.1.2         Check Internet Explorer Security Settings



1)     On the Menu par of Internet Explorer select Tools->Settings.

2)  In the Settings Dialog Box select the Security Tab.

3)     Select Internet (select Local Intranet if Advantech WebAccess/SCADA Project node is in the same intranet).  Local Intranet will allow you to maintain Highest security for all other web sites, but allow Advantech WebAccess/SCADA VIEW (an ActiveX control) to run inside you browser.)

4)  Select Default Level.

5)       Select Medium .

6)       Select OK.

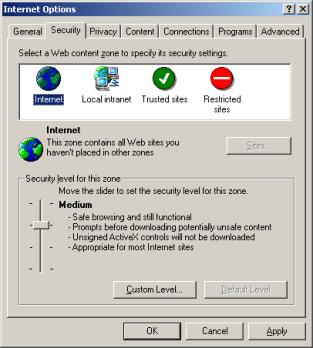

Figure 22.1 - Internet Zone Security - changes here affect all websites you visit.

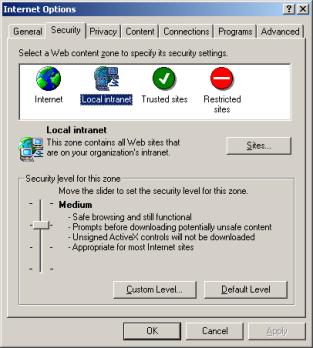

Figure 22.2 - Local Intranet or Trusted Sites Security- changes here do not affect unknown web sites you visit

7)     If you selected Local intranet or Trust Sites - select Sites.

8)     Uncheck “Require server verification (https:) for all sites”.

9)     Type the IP Address of the Advantech WebAccess/SCADA Project Node.


Figure 22.3 - Trusted Sites Lists



10) Select Add.

11) Select OK.

12) Select OK.



Now see if you can run VIEW in your browser.
