7.18.1 Holiday

Holiday can be used for any calendar event or series of events, based on the Month, Day of Month and Year, up to 1 year in the future. Multiple holiday schedules can be configured and assigned to different groups of tags.

It’s typically used is to create "Holiday" groups to have an "exception" to the normal weekday schedule. A Holiday Schedule can be created for any calendar event, not just holidays that are based on the Day, Month and Year.

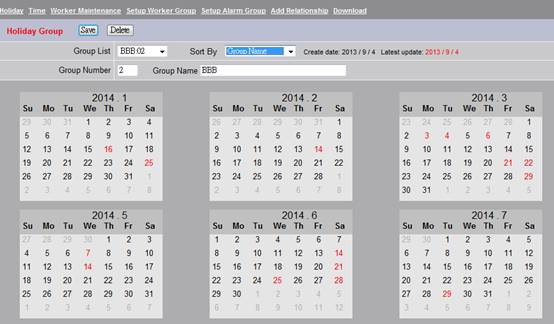

Figure 7.18.1.1 Holiday configuration - Alarm Management System

Holidays and exceptions to normal schedules are shown in RED. Click once on a date to add or remove it as a "holiday".

• Group List ： A List of all configured Holidays.

• Sort By：Changes how Holiday Groups are sorted in the Group List: by Name or Number.

•

• •  Group Number：In the Group list, the Group Name is shown next to the Group Number.

  •  Group Name：In the Group list, the Group Number is shown next to the Group Name.

• Group Number： A user defined number for the Holiday Schedule.

• •  Entering a New number, not already specified, will create a new Holiday Group

  • Entering a number of an existing group will try to over-write or update that Holiday Group.

•  Group Name：The user defined Name for this Holiday Schedule.

•  Save ：Save without downloading the currently displayed Holiday Group, as the group number specified in Group Number.

• •  If that Group number does not already exist, this will create a new Holiday Schedule.

  •   If that group number does exist, it will try to over-write the existing group with this Holiday Schedule and description.

• Delete： Delete the specified Holiday group, specified by the Group Number.

Each Worker Group has one Holiday Group assigned to it. This Holiday Schedule becomes the "exception" to the normal weekday schedule defined in each Worker Group.  The same Holiday Group can be assigned to multiple Worker Groups.
