7.18.5  Setup Alarm Group

The Alarm Group connects to the Worker Group to send alarm messages with the same Holiday and Time Group. The alarm message of one tag can be received by multiple workers.

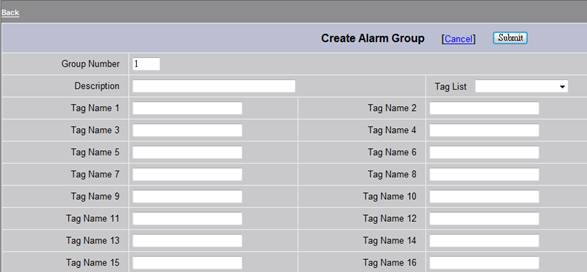

Click Setup Alarm Group

• Group Number：The Number of the Alarm Group. The next number in the Alarm Group is automatically assigned once the first is submitted.

• Description：The description of the Alarm Group

• Tag List：The Tag List provides a pull down menu of tag names for easy data entry. Click the fields listed under the Tag Name and then open the Tag List by clicking it.  Scroll down to find the tag name. Click once on the tag name to enter it into the selected tag name field.

• Submit：Save the Alarm Group.

• Cancel：Cancel building the Group and return to the Alarm Group List.

• Update：Update the information

• Delete：Delete the data of Alarm Group
